No tag timber hangers

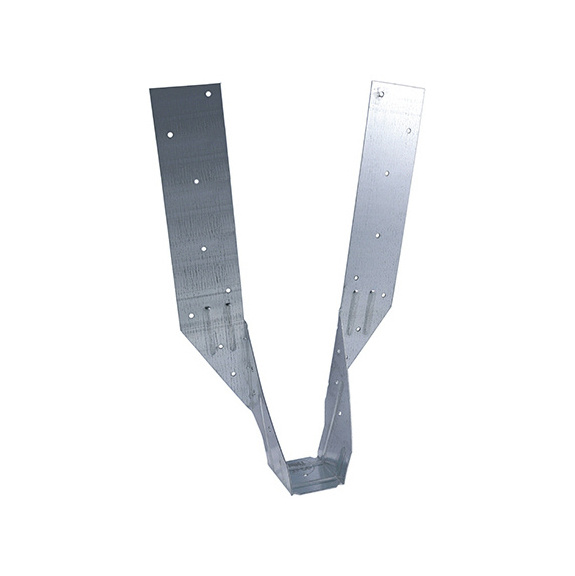

Timber Hanger No Tag Galv 90x125 to 220
Art.-no. 0681900005
EAN 5022456315199
Individual price display after login
Exclusively for trade customers
Register now and access more than 10,000 products
Advantages:
The superior design allows the use of fewer nails for faster installation.
All widths can take up to a 220mm deep joist.
Manufactured from Pre-Galvanized Steel to give a high level of corrosion resistance.
Technical date
Bearing: 60mm
Characteristic value (kN) Eurocode 5: 14.41
No of nail holes: 23
Safe working load (kN) BS5628 – short term: 7.21
Safe working load (kN) BS5628 – medium term: 6.86
Safe working load (kN) BS5628 – long term: 6.00
Advice:
Ensure the back plate of the hanger sits flat against the timber.
Joist should be square cut and sit tight to the back of the hanger.
Fix the joist in every hole with 3.75 x 30 galvanised square twist nails
Product information
Datasheets(X)
Thickness | 0.8 mm |
Material | Steel |
Material designation | S250GD |
Surface | Zinc plated |
Width | 90 mm |
Length | 258 mm |
Type description | Joist W x H 90 x 125 to 220mm |
Number of nail holes | 23 PCS |
