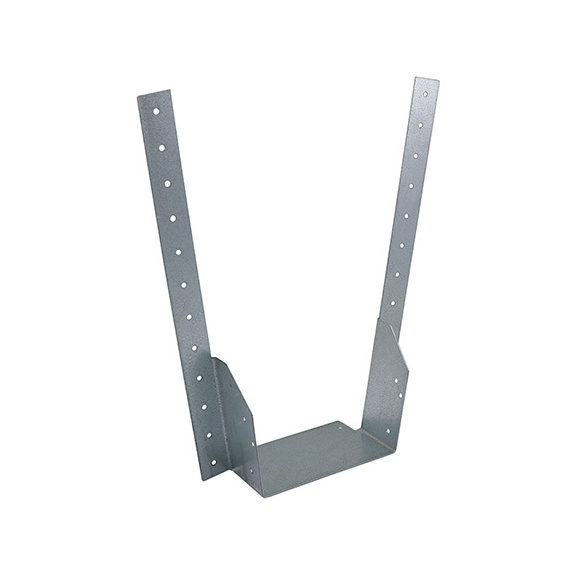

Standard timber hanger
Timber Hanger Stand Galv 150x100 to 225
Art.-no. 0681901002
EAN 5022456314611
Individual price display after login
Exclusively for trade customers
Register now and access more than 10,000 products
Advantages:
Designed as simple solution for various timber to timber connections such as joists and stairwell trimming.
They have increased leg lengths so that all widths can take up to a 225mm deep joist.
Manufactured from pre-galvanized steel to give a high level of corrosion resistance.
Tech data
Bearing: 50mm
Characteristic value (kN) Eurocode 5: 15.44
No of nail holes: 32
Safe working load (kN) BS5628 – short term: 7.72
Safe working load (kN) BS5628 – medium term:7.35
Safe working load (kN) BS5628 – long term: 6.43
Advice:
Ensure the back plate of the hanger sits flat against the timber.
Joist should be square cut and sit tight to the back of the hanger.
Fix the joist in every hole with 3.75 x 30 galvanised square twist nails
Product information
Datasheets(X)
Thickness | 1.0 mm |
Material | Steel |
Material designation | S250GD |
Surface | Zinc plated |
Width | 150 mm |
Length | 300 nm |
Type description | Joist W x H 150 x 100 to 225mm |
Number of nail holes | 32 PCS |
