Masonry hanger
For detailed information, other images and documents, please select individual articles from the following table.
Available in 4 versions
Individual price display after login
Exclusively for trade customers
Register now and access more than 10,000 products
Variants
Exclusively for trade customers
Register now and access more than 10,000 products
Advantages:

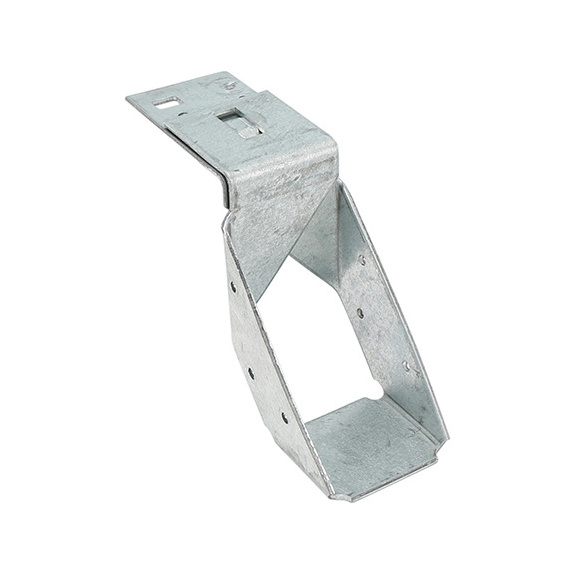

The Masonry Hanger has been designed to support timber joists from a brick or block wall.
Install by either building into the wall or for renovation work, rake out existing brickwork.
Manufactured from pre-galvanized steel to give a high level of corrosion resistance.
Tech data
Bearing: 80/75* (* greater than 165mm height )mm
Characteristic value (kN) Eurocode 6: 9.7
No of nail holes: 6
Safe working load (kN) BS5628: 5.4
Advice:
installation guide
Ensure the back plate of the hanger sits flat against the wall and is securely fixed.
A minimum of three block courses (675mm) must be constructed above the hanger before the joist is loaded.
Nail the side flanges with 3.75 x 30 galvanised square twist nails.
Allow enough time for the mortar to cure before any load is applied.
Maximum gap between the wall and joist is 6mm.
Joist should be square cut and sit tight to the back of the hanger.
Hangers 150mm and above are manufactured 10mm less to allow for notching and regularised timber.
