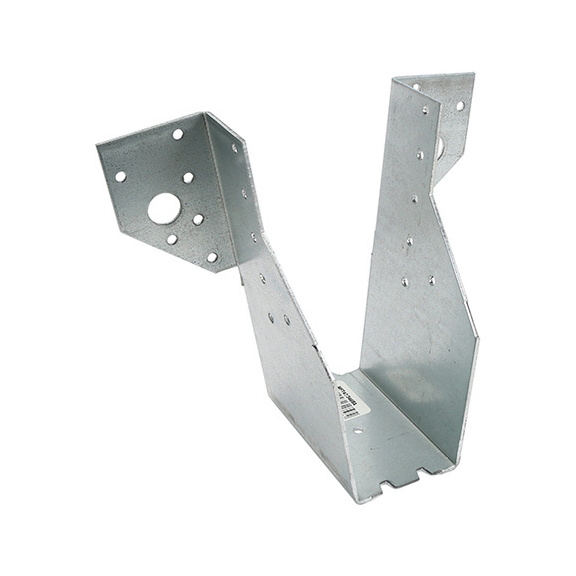

Multi function hanger
For detailed information, other images and documents, please select individual articles from the following table.
Available in 8 versions
Individual price display after login
Exclusively for trade customers
Register now and access more than 10,000 products
Variants
Exclusively for trade customers
Register now and access more than 10,000 products
Advantages:
Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available.
Designed for use with different fixings to give greater flexibility and improved performance.
Manufactured from pre-galvanized steel to give a high level of corrosion resistance.
Please note Length refers in this instance to the length of the hanger when laid flat.
Tech data
Bearing: 85mm
Advice:
installation guide
Ensure the back plate of the hanger sits flat against the wall and is securely fixed.
A minimum of three block courses (675mm) must be constructed above the hanger before the joist is loaded.
Nail the side flanges with 3.75 x 30 galvanised square twist nails.
Allow enough time for the mortar to cure before any load is applied.
Maximum gap between the wall and joist is 6mm.
Joist should be square cut and sit tight to the back of the hanger.
Hangers 150mm and above are manufactured 10mm less to allow for notching and regularised timber.
All holes should be nailed using 3.75 x 30 square twist nails
