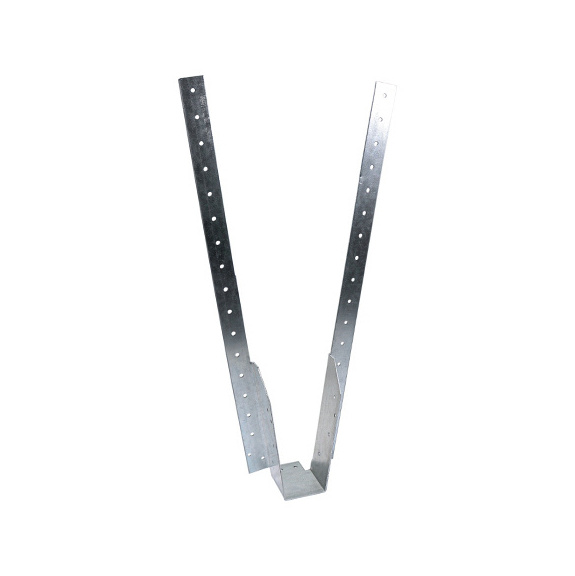

Long leg timber hanger

Advantages:

Designed for deeper timber to timber applications.
Ideal for loft conversions and “under-slung” floor joist applications where the hanger extends below the supporting beam.
They have increase leg lengths so that all widths can take up to a 250mm deep joist.
Manufactured from Pre-Galvanized Steel to give a high level of corrosion resistance.


Tech data
Bearing: 50mm
Characteristic value (kN) Eurocode 5: 28.04
No of nail holes: 46
Safe working load (kN) BS5628 – short term: 14.02
Safe working load (kN) BS5628 – medium term:13.35
Safe working load (kN) BS5628 – long term:11.68

Advice:

Ensure the back plate of the hanger sits flat against the timber.
Joist should be square cut and sit tight to the back of the hanger.
Fix the joist in every hole with 3.75 x 30 galvanised square twist nails
